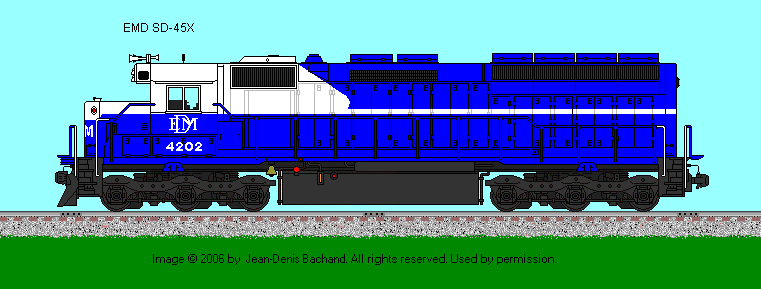

EMD SD45X |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 11 September 2006 |
Artwork by: Jean-Denis Bachand |
| - |
| Engine Builder: EMDI |
Engine: 645F3B 16 cylinder |
| Bore & Stroke |
9.02" X 10" |
| RPM (Maximum / Minimum) |
904 / 318 |
| Main Generator: AR10 |
Horsepower: 4200 |
| Gear Ratio: 62:15 |
Speed: 65 mph |
| Trucks: HTC 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Electrical Drive (4) |
Model: D77 |
| Weight: 368,000 lbs |
Traction Motors: Six |
| Tractive Effort (starting) 92,000 lbs @25% |
Tractive Effort (continuous): 82,100 lbs @ 11 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: Delco A8102 |
Alternator: GMD14 |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Gardner-Denver |
Model: WBO |
| Quantity Built: 7
|
Dates: 6/1970 to 2/1971 |
| - |
- |
| Exterior Dimensions
| SD45X |
| Total Length |
70'-08" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
13'-07" |
| Height to Top Engine Hood |
14'-08.5" |
| Height to Top Cab |
15'-07.5" |
| Cab Width |
10'-03" |
| Top of Walkway |
8'-09.5" |
| Walkway Width |
3'-08.5" |
| Engine Hood Width |
10'-00" |
| Center Bolster |
45'-00" |
| Center Front Truck to Front Pilot |
3'-09" |
| Center Rear Truck to Rear Pilot |
3'-09" |
| Distance between Truck Centers |
58'-07.5" |
| Minimum Turning Radious |
30 degrees |
| -
| - |
| Fuel Oil: 4400
| Lubricating Oil: 394 |
| Engine Cooling Water: 233
| Sand Capacity: 56 cu. ft. |
| Options: |
| - |
Reference Sources:
- Electro-Motive Diesel,Inc. (website)
|
